Down A Deer Vetch Rabbit Hole

A single observation recently led me down a pleasant rabbit hole of data, plant species trends, and unanswered questions about interactions between climate, grazing, fire, soils, and other factors.  Read on if you want to follow me down that hole…

The journey started because I noticed an abundance of deer vetch (Lotus unifoliolatus) in one of our restored prairies this year.  Deer vetch (also known as American bird’s-foot trefoil, though not the bird’s-foot trefoil you’ve probably heard of) is a native annual legume that likes sandy soils.  It’s a neat little plant and we target it during seed harvesting efforts to ensure that it shows up well in our restored prairies.  I first noticed a lot of deer vetch in the portion of prairie that was burned and intensively grazed all of last year, so I figured it was responding to that grazing.  But then I found even bigger patches of it in the other half of the same prairie where there had been no fire and only very light grazing.  Interesting…

Deer vetch, aka American bird’s-foot trefoil (Lotus unifoliolatus – formerly Lotus purshianus)

This prairie was established on former cropland in 2000, using a seed mix of about 180 different prairie and wetland species.  It is one of our showiest sites, in terms of flower abundance and color.  Below are a couple photos of from the portion of the prairie that was burned in the spring and intensively grazed all summer (as part of a patch-burn grazing system).  You can see from the images that most of the grass was grazed pretty short all season.  Many of the wildflowers in the burned patch were also grazed, but some still managed to bloom and set seed.  I apparently didn’t get any photos from the unburned/ungrazed side of the prairie last year, so you’ll just have to squint at these and imagine them with taller grass and more blooming flowers…

In 2016, the west half of this restored prairie was burned and then grazed intensively all season. This August 2016 photo shows that most of the grass was very short, though at least some wildflowers were ungrazed.

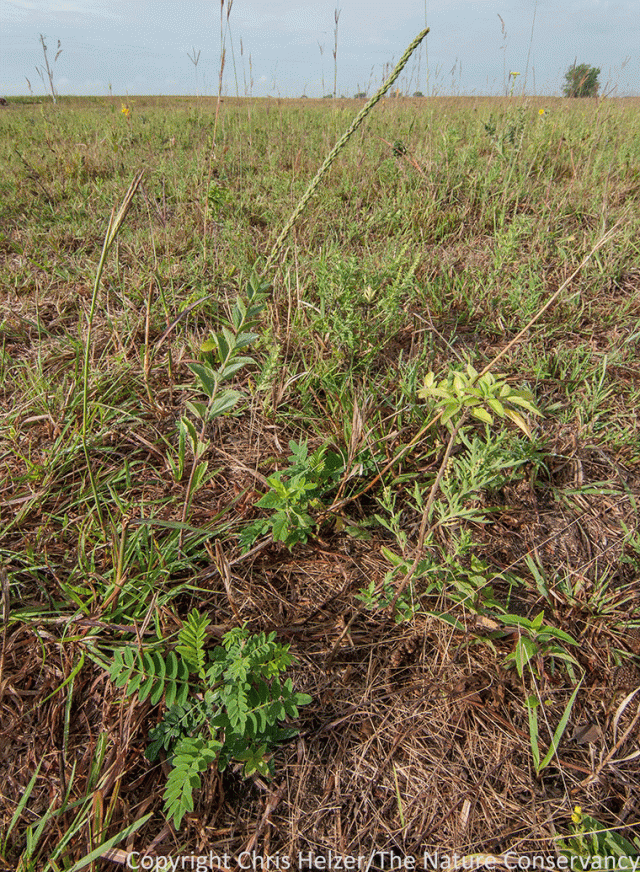

Here’s another August 2016 photo of the intensively grazed portion of the prairie. Note the grazed Canada milkvetch (Astragalus canadensis) plant near the lower left corner of the image. That species and rosinweed (Silphium integrifolium) are two of the favorites of cattle at our sites.

As it happens, I collect data from this particular site every other year as part of a project looking at how plant communities respond to management within our prairies.  To collect the data, I walk back and forth across the prairie and lay down a plot frame at regular intervals.  I list all the plant species that occur within that one square meter plot frame each time I set it down.  The data allow me to look at trends in individual species populations and at how species diversity/richness changes over time.  Here is the data for deer vetch, which confirms my observation that it is having a particularly good year.  In 2017, it showed up in about 35% of my sampling plots.

The relatively steady increase of deer vetch over time made me wonder if other short-lived plants were acting the same way.  I pulled out some of the more common annual and biennial species at that prairie and graphed them out.

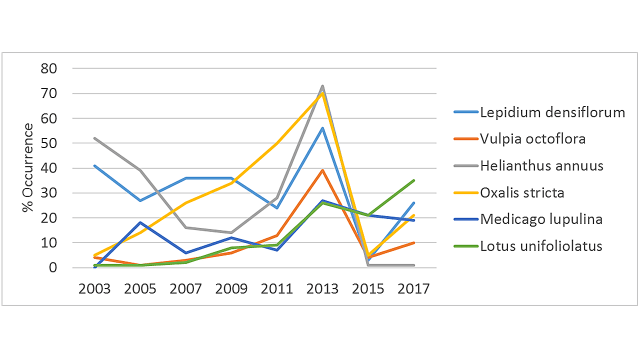

In order, the species on this graph are: small peppergrass, six-weeks fescue, annual sunflower, yellow woodsorrel, black medic, and deer vetch.

Clearly, not all the short-lived plants were following the same trend as deer vetch, but it was striking to see how many had a peak in abundance in 2013, the year after our severe 2012 drought.  That makes sense since the drought was pretty hard on perennial grasses and other strong competitors in the prairie.  It created space for opportunistic plants to exploit.  However, not all of the short-lived plants followed the same pattern of response to the 2013 drought.

The plants listed on this graph are marestail, downy brome, and white sweet clover, though I lump downy/Japanese brome and white/yellow sweet clover together in my data.

None of the three species in the above graph show any noticeable response to the drought.  Instead, they each seem to be on their own path.  Marestail has declined significantly since the early days of the prairie’s existence, but had a resurgence (for some reason?) in 2015.  Sweet clover has been persisting at relatively low levels during the entire life of the restoration, and annual brome has been on a steady increase, much like deer vetch.  We’re far enough east that our average annual rainfall (25 inches/year) keeps annual brome from being problematic, so I’m not concerned about that increase, but I was curious whether or not deer vetch and annual brome were filling a gap left by the decline of other species.

Next stop on the rabbit hole journey coming up…

The species in this graph’s legend are Canada wildrye, big bluestem, Indiangrass, short-beaked sedge, and Kentucky bluegrass.

Thinking maybe declining grass dominance might explain the rise of deer vetch and annual brome, I looked at how the populations of perennial grasses are doing at the site.  In most cases, they are on an upward trend.  The above graph shows some of the more abundant perennial grasses and sedges in the prairie and the graph below shows some of the less abundant species.  (There are many more grass species not shown because they don’t appear often enough in my sampling plots to see patterns.)  A glaring exception to the overall pattern is Canada wildrye (Elymus canadensis) which seems to be following the same pattern as it does in most of our restored prairies – it is very abundant when the prairie is young and then gradually declines to about 30% occurrence after 10-15 years.

These less abundant (but still common) grasses are: Scribner’s panicum, switchgrass, little bluestem, tall dropseed, and smooth brome.

By this point, I’d kind of forgotten why I’d started my journey, but after looking at annual plants and perennial grasses, it seemed logical to look next at perennial wildflowers.  Some of those species have also been pretty steadily increasing over time, and may or may not be leveling off in recent years.

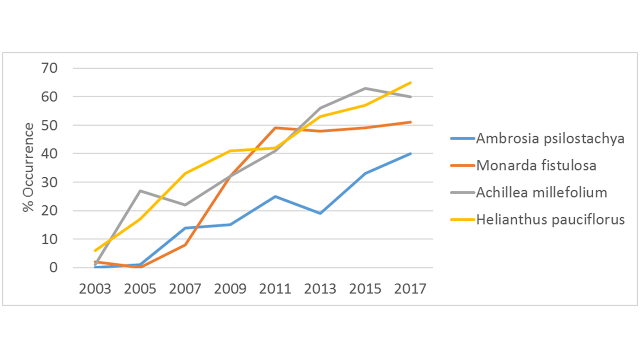

Plants listed in the legend are western ragweed, wild bergamot, woolly yarrow, and stiff sunflower.

Other perennial wildflowers have had much less predictable paths, with big jumps between sampling periods, during which they (at least) doubled their level of occurrence in my sampling plots.  Interestingly, those jumps happened in different years for each species.  Having data only from every other year makes it tricky to interpret these patterns, but it seems clear that each of these species is responding a little differently to factors such as climate, fire, grazing, and/or competition from other plants.

These species are Illinois bundleflower, hoary vervain, stiff goldenrod, and heath aster.

Many of the wildflowers shown in the above two graphs are species that I’d expect to thrive under patch-burn grazing.  With the exception of stiff sunflower (Helianthus pauciflorus), Illinois bundleflower (Desmanthus illinoensis) and heath aster (Aster ericoides), they are plants that cattle don’t particularly care to eat.  The plant species I watch most carefully under this kind of management are those that are favorites of cattle.  The graph below shows those species maintaining very steady population numbers.  None of them are super abundant, but they’re holding their places very well.

Species here are white prairie clover (purple prairie clover shows a similar pattern but is slightly less abundant), Canada milkvetch, and rosinweed.

Prairie clovers (Dalea sp) are certainly enjoyed by cattle, but rosinweed (Silphium integrifolium) and Canada milkvetch (Astragalus canadensis) must taste like brownies to our cattle – they are grazed down to the ground wherever they grow, regardless of whether they’re in the burned or unburned portion of the prairie.  Because of the affinity cattle have for species like this, we periodically exclude cattle from our prairies for an entire growing season, giving those plants a chance to bloom and produce seeds, buds, and rhizomes.  This is actually one of those years in which we’ve excluded cattle, and it’s nice to see abundant flowers from both the rosinweed and milkvetch.

Canada milkvetch is blooming prolifically this year in the absence of cattle – it is shown here in the same area that was grazed intensively all last year and grass vigor is still suppressed.

Here’s Canada milkvetch in the area not grazed hard last year – the grasses are much taller here…

Of course, looking at how individual species are doing made me wonder how all those trends add up at the community level.  Here is a graph showing how the average species richness (number of species) at the square meter level has changed over time.

This graph shows the average number of plant species found in square meter plots each year. In our part of Nebraska, 10-12 plant species per meter is a very respectable number.  It appears we may have reached a saturation point for species density in this site, though there is still variation from year to year.

Looking through all of these data, I see two main themes.  First, I see a restored prairie that is still finding its identity, even after 17 years.  Some plant species are still increasing in their abundance (including many not shown here). I expect many of those trends to level off within the next several years as those species find and colonize all the little patches of prairie where they are well adapted to growing.  That would fit with what seems to be a plateau in terms of species richness per square meter.  I don’t see any plant species (including those not shown here) that have disappeared from the site, and only a few short-lived species that have declined precipitously over time – and even those still appear to remain embedded within the community, able to proliferate whenever the right conditions appear.

Second, I see positive signs of ecological resilience in the way many of these plant species have quickly increased and decreased their population sizes over time.  Sometimes I can tell what conditions (fire, grazing, drought) might have led to those population changes, but other times I can’t.  Regardless, the ability of a community to flex and adapt as conditions change is a key component of ecological resilience, and it’s really great to see that within a restored prairie.


……..What was I talking about again?

Oh yeah, deer vetch.  Yep, deer vetch is doing really well this year.  Thanks for asking.

One last photo of the area burned and intensively grazed in 2016. Rosinweed (yellow flower in the foreground) can be seen blooming throughout the site, along with many more opportunistic plants such as the pink-flowered wild bergamot.

The Joy, Angst, Excitement and Dread of Walking Through a Young Restored Prairie

Anyone who has watched a prairie seeding go through its first several years of establishment will appreciate and identify with this post.  For those of you who haven’t, the best analogy I can come up with is that the experience is a little like watching your son or daughter go off into the world on their own.  You can spend tremendous energy planning ahead, preparing a site, and harvesting and planting seed, but at some point, you have to just stand back and let the new prairie stand or fall on its own.  Sure, you can jump in and knock back the weeds a little now and then, but eventual success or failure depends upon many factors beyond your control, and it can be hard to predict the result during the first few years.

In February and March of 2016, we planted about 60 acres of land with a seed mixture of around 140 prairie and wetland plant species.  The site had been cropland for many years, and then was converted to a mixture of native grasses and used as pasture.  Eventually, the site became heavily invaded with tall fescue, smooth brome, and Kentucky bluegrass.  A few years ago, we decided to kill off the existing vegetation and try to establish a much more diverse plant community.  Although it had been farmed, the site still had some remnant wetland swales that had been farmed through and partially filled, but still had some wetland hydrology.  Restoring this 60 acres feeds into our larger restoration objectives of enlarging and reconnecting remnant (unplowed) prairies in the area.

Volunteers hand broadcast wetland seed on frozen wetlands during February 2016.

This “drop spreader” was used to plant the majority of the site.

We used a combination of herbicide application and tillage to get rid of the grasses and prepare a seed bed.  In addition, (under the appropriate permits) we had a contractor with a big scraper come in and deepen/widen the degraded wetland swales.  Using seed we harvested from nearby prairies and wetlands, a couple different groups of volunteers hand-planted the wetland swales and low sandy ridges created by excavation spoil, and we used a broadcast seeder behind a UTV to plant the remainder of the site.  (Thank you to the U.S. Fish and Wildlife Service, Nebraska Natural Legacy Project, and Nebraska Environmental Trust for funding this project.)

During the 2016 growing season, I visited the site very rarely, and didn’t spend much time there when I did.  Early in the season, there wasn’t much germinating and growing except the kinds of “weeds” you’d see in an abandoned crop field (foxtails, pigweeds, ragweeds, annual sunflowers, etc.).  Later in the season, those weedy plants had grown so tall and thick, it was physically difficult to walk through them.

This photo shows the kind of weed cover that grew during the first growing season. Lots of tall ragweed and annual sunflowers were joined by some perennial sunflowers and other plant species we had seeded.  This is pretty typical of what we see during the first year of our restored prairies.

I walked around this site on Monday of this week and tried to capture what I saw with my camera.  As I explored, I experienced a roller coaster of emotions.  Some areas are looking way ahead of schedule, with a nice diversity of prairie and wetland plants coming in, while others don’t look like they’ve even started, or have problematic plants that we might eventually have to deal with.  On the whole, I feel good about the progress of the restoration, though we do have some trees to control, but my overall confidence comes mainly because I’ve been through this process many times.  We’ve had restored prairies look like junk for 4 or 5 years before finally kicking into gear, and others that look like a prairie after two years.  Very rarely have we seen plantings fail.  Regardless, it’s way too early to guess how this planting will turn out.

For what it’s worth, here is what I saw and thought about during my walk around this prairie at the beginning of its second field season.

The first thing I saw as I walked into the new prairie was a pretty good sized patch of 3-4 foot tall cottonwood trees (Populus deltoides).  The parent trees can be seen in the background.  We’ve been getting smarter about removing those kinds of seed  sources before starting projects, but these trees are growing along a public road and we didn’t have the authority to remove them.  We’ll have to evaluate our options for controlling the young cottonwoods in our new prairie.

A skeleton of an annual sunflower from the initial season shows how big some of those pioneering species were last year. Many of the sunflowers were over 12 feet tall.

Biennial wildflowers, like this prairie ragwort (Packera plattensis) germinated last year and are blooming this year. Hopefully, this one will start a colony that will help support spring-flying bees and other pollinators in future years.  A pair of crane flies are mating on top of this one.

I was excited to see quite a few sedges blooming in only their second year. We don’t always get quick establishment of sedges from seeds. This one (Carex craweii) was in a patch of maybe 10 plants along the edge of a wetland, and I found at least three other species growing elsewhere in the site.

To balance out the excitement of seeing lots of sedges, I also found quite a few areas where there wasn’t much yet growing from our seed. This big patch of marestail (Conyza canadensis) was representative of maybe 30% of the planting. I think this is a soil issue – in our alluvial soils, prairie plant communities can vary dramatically from place to place, based on the soil deposits beneath them. Restored prairies establish with great variation for the same reasons.

Canada milkvetch (Astragalus canadensis), hoary vervain (Verbena stricta), goldenrod (Solidago gigantea), and Canada wild rye (Elymus canadensis) make up a very nice patch of new prairie plants.

The wetland swales are filling in quickly with wetland plants, including lots of spikerushes, grasses, rushes, and a few forbs and sedges. Much of that vegetation came from our seed, but I think some also came from the seedbank.

We purposefully designed the wetlands to vary in their depth to groundwater so that we’d have some areas of standing water most of the time, but also many other areas that go dry each summer.

Some of the wetland pools had tadpoles in them, likely from the Woodhouse’s toads that have already colonized the area. I also saw leopard frogs hopping around.  In addition, numerous snails, and aquatic insects were moving around in the water, and dragonflies and damselflies were buzzing around above it.

This section of wetland had standing water a few weeks ago, but has now gone dry, leaving great habitat for shorebirds (but also for young cottonwoods).  The vegetation along the margin of this wetland is mostly native colonizing plant species such as fleabane (Erigeron annuus), yarrow (Achillea millefolium), and Canada wildrye.

Sweetclover (Melilotus sp) is abundant across much of the new site. Experience shows that sweet clover (though I don’t like it) doesn’t seem to actually affect plant diversity much in our restored prairies, so we’ll just let it go until the site is established well enough to support fire and cattle grazing. At that point, the cattle will keep the sweet clover suppressed because it’s one of their favorite plants to eat.

In addition to areas of strong native plant growth and others dominated still by non-native or “weedy” plants, there were also areas where bare ground was still plentiful. Again, alluvial soils make all of this really interesting because the soils vary greatly from place to place and strongly regulate plant growth.

Last year’s seed pods of Illinois bundleflower (Desmanthus illinoensis) show that this native perennial legume established and bloomed in its first year at the site.

Duck and raccoon tracks joined the tracks of many shorebirds along the edges of the restored wetlands. It’s really encouraging to see how quickly wildlife and insect species colonize these sites, even while the plant community is still young.

I’ll probably return to walk through this site numerous times this season because I can’t help myself.  Apart from working on cottonwood trees and a few musk thistles, however, it’s unlikely that we’ll actually do anything else here, so my visits will be mostly out of curiosity rather than to stimulate management.  As with this trip, I’ll see things on future walks that will encourage me and others that will make me wonder if the planting will end up as a disaster, even though I know it’s too soon to know anything.

Within the next few years, we’ll try to burn the new prairie whenever we can, and when the major grasses start to assert their dominance, we’ll begin grazing the site in ways that support a diversity of plants and animals.  Typically, that grazing begins when the site is between 5 and 8 years old.  In the meantime, there’s really nothing to do but wait.  (But I’ll still peek in now and then anyway.)

I was really glad to see coyote tracks along the edge of the site. The presence of these (relatively) large predators will be key to the long-term success of the ecological community in this restored prairie.

For those of you with technical questions about our restoration methods, we didn’t test our seed for viability, but based on previous experience, our seeding rate for this planting was probably about 2-4 lbs PLS/acre, about 2/3 of which was grasses and 1/3 was forbs, sedges, etc.  We typically broadcast our seed into recently harvested soybean fields, so this planting was a little different, but not that different.  We don’t mow weeds during the first season based on trials that have shown no difference in long-term establishment (sandy soils help keep weed densities low enough to still allow sufficient light to hit the ground, despite what it looks like in the 2016 photo in this post).  We don’t cultipack or harrow seeds in either.  We’re fortunate not to have much trouble with aggressive perennial invasive plants in our early plantings, which makes our weed control pretty easy.  Deciduous trees are the main exception to that, especially cottonwoods (as shown above) and Siberian elms (not too bad at this site).  Later, we see invasion by perennial cool-season invasive grasses, but we suppress those with fire and grazing.
